Important formulas and equations from Experiments for JEE Advanced Physics.
Formulas — Experiments

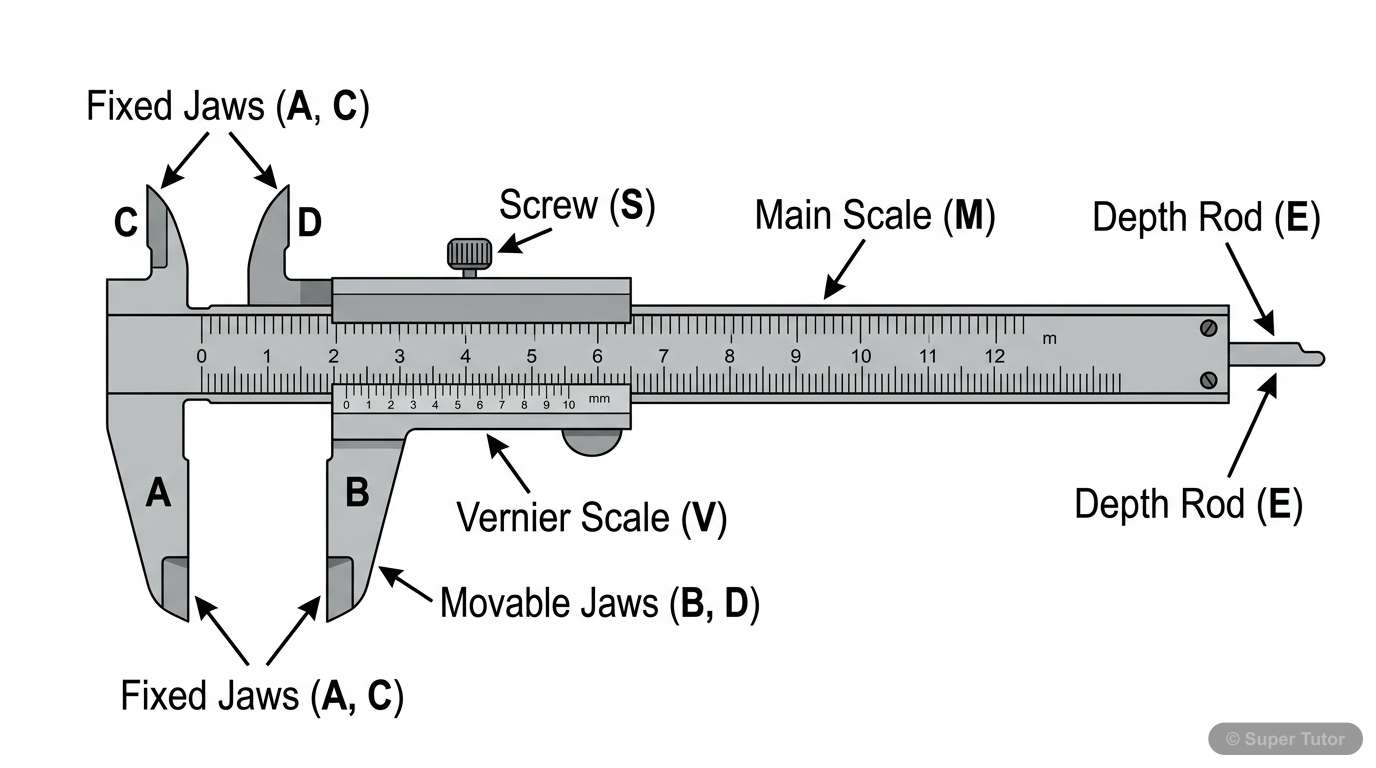

3.1 Vernier Callipers
LC = VC = 1 MSD − 1 VSD = (1 MSD) / nTotal Reading = N + (n × LC)Actual Length = Observed Length − Zero ErrorPositive Zero Error = N + x × LC3.2 Screw Gauge
LC = Pitch / (Number of circular scale divisions)Total Reading = N + n × LCAbsolute Reading = Measured Reading − Zero Error3.3 Simple Pendulum — Determination of g
T = 2π √(L/g)g = 4π²L / T²T² = (4π²/g) × L → slope of T² vs L graph = 4π²/g(Δg/g) × 100 = (ΔL/L + 2ΔT/T) × 1003.4 Young's Modulus by Searle's Method
Y = (MgL) / (πr²l) = (FL) / (Al)Δl = (L / πr²Y) × w → slope of Δl vs Δw graph = L / πr²Y(ΔY/Y) × 100 = (ΔL/L + Δl/l + 2Δr/r) × 100Get the complete formula sheet with derivations — continue in Super Tutor
Frequently Asked Questions
What topics are covered in Experiments for JEE Advanced?
Experiments is an important chapter in JEE Advanced Physics. It covers key concepts and formulas that are frequently tested in the exam. Key topics include: 3.1 Vernier Callipers, 3.2 Screw Gauge (Micrometer Screw), 3.3 Determination of 'g' using Simple Pendulum, 3.4 Young's Modulus by Searle's Method.
How important is Experiments for JEE Advanced?
Experiments is a frequently tested chapter in JEE Advanced Physics. Questions from this chapter appear regularly in previous year papers. There are 53 practice questions available for this chapter.
How to prepare Experiments for JEE Advanced?
Start by understanding the core concepts, then solve practice questions. Focus on formulas and their applications. Use revision notes for quick review before the exam.
